Description
Quality, torque and excellent ergonomics for easy working.

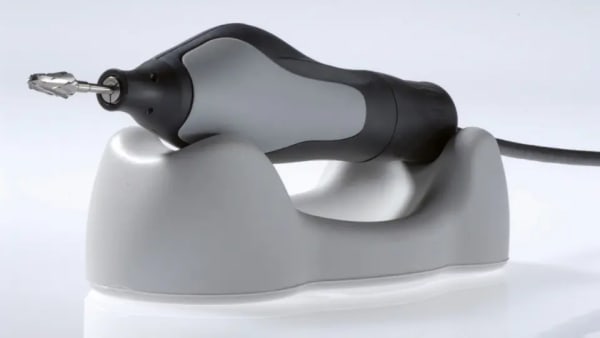

The KaVo K-ERGOgrip laboratory handpiece is a pro at working on all common materials, thanks to its high torque of 7 Ncm and 50,000 rpm clockwise and counterclockwise. Its lightweight design and ergonomic grip sleeves also make working with the KaVo K-ERGOgrip particularly comfortable and easy on the joints.
The K-ERGOgrip is the successor to the successful KaVo K9 dental handpieces. K-ERGOgrip laboratory handpieces with the patented single-shaft system surpass even the renowned quality of previous KaVo drives, with outstanding durability, maximum reliability, perfectly smooth running and a long service life.
The patented shaft system with just two bearings guarantees easy servicing. The sealed ball bearings are extremely durable and very easy to change in case of repairs.
The chuck retention force is 40% greater than the previous models, so the shanks are protected and the drill bit is prevented from slipping. Pleasant working environment due to negligible warming effect. Low vibrations and long service life thanks to robust shaft system.
TECHNICAL INFORMATION:
- Speed: 1,000 - 50,000 rpm in clockwise operation. No limit in anti-clockwise operation
- Torque: 7Ncm
- Power: 160 W
- Chuck System: Retention force min. 100N. Chuck exchange without tools..
- Temperature increase when operating: Extra low + 5°K
- Dimensions: L = 140 mm short
D = 28 - 38 mm oval for peeling handle
D = 11 mm stylus position - Weight: Dental handpiece 202 g
cable 107 g - Ergonomics: 2K Softgrip shank
Two different, exchangeable ergonomic handles
Optimum hand-arm angle - Easy to service: Geringe Anzahl von Bauteilen
One-Shaft-System (nur 2 Verschraubungen um beide Kugellager zu wechseln) - Control: Low number of component parts
One-shaft system (only 2 screw connections for exchanging both ball bearings) - Actuation of accessory devices: with K-Control TLC via 12-V relay
